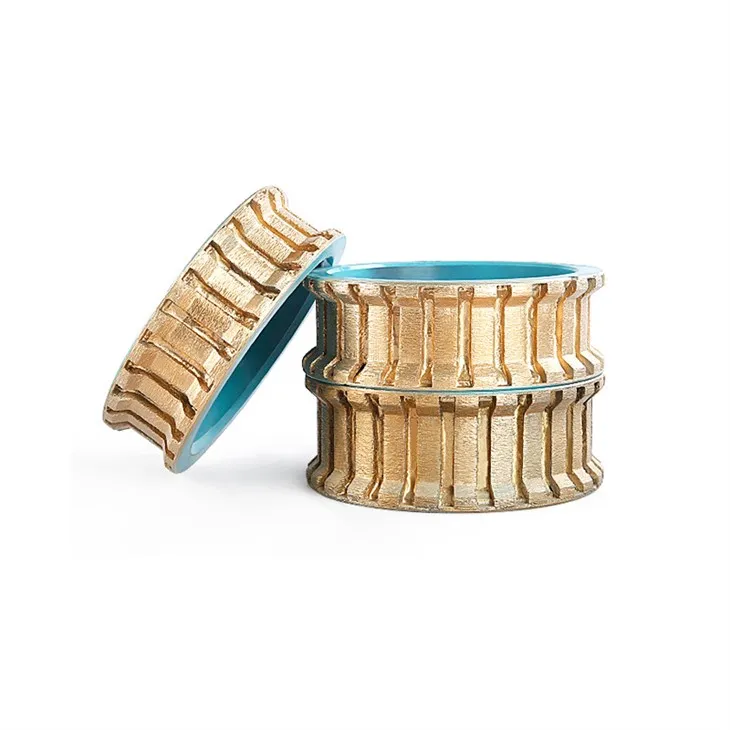

Ob Chav Chamfer 45 Ntug Sib Tsoo Log

Product Info:

Pob zeb diamond sib tsoo log sintered nrog hlau alloys feem ntau hu ua pob zeb diamond log: lub pob zeb diamond uas muaj ib feem ntawm lub pob zeb diamond log yog hu ua txheej ua hauj lwm, thiab cov txheej txheem ua hauj lwm feem ntau yog ncig, yog li nws tseem hu ua lub nplhaib ua haujlwm. Qhov siab ntawm lub nplhaib ua haujlwm yog hu ua qhov siab ua haujlwm, thiab qhov dav ntawm lub nplhaib ua haujlwm yog hu ua lub nplhaib dav. Lub sab nraud ntawm lub nplhaib dav nyob rau sab nraud ntawm lub nplhaib sib tsoo yog hu ua lub nplhaib sab hauv, thiab sab hauv yog hu ua lub nplhaib puab; Lub cheeb ntawm pob zeb diamond hais feem ntau hu ua particle loj lossis mesh loj. Lub voj voog ntawm lub nplhaib ua haujlwm tuaj yeem cuam tshuam nrog lub khob ob zaug. Lub nplhaib ua haujlwm uas tuaj rau hauv kev sib cuag ua ntej yog lub nplhaib pem hauv ntej, thiab qhov uas tuaj rau hauv kev sib cuag tom qab yog hu ua lub nplhaib nraub qaum. Qhov dav ntawm lub khob tom qab txiav thiab sib tsoo yog feem ntau hu ua machining nyiaj pub dawb

Nta:
1.Kev ruaj ntseg thiab ruaj khov
2. Sib tsoo lub log kom nto du dua
3.Long lifespan rau pob zeb diamond sib tsoo log
4. Yog tias koj muaj kev txaus siab rau peb cov khoom, thov hu rau peb, peb tuaj yeem muab cov nqi qis thiab cov khoom zoo rau koj.
5. Muaj ntau yam tshwj xeeb tuaj yeem xaiv.

Cov teeb meem tshwm sim thiab cov lus teb thaum siv lub log sib tsoo
Q1: Tom qab tau hauv av los ntawm lub tshuab ob sab, tseem muaj qhov tsis xws luag xws li ntug chipping, ces kaum poob, thiab sib tsoo cov cim ntawm lub khob.
A1:

Kev xaiv ntawm kev sib tsoo log particle loj yog qhov tsis tsim nyog lossis kev ua haujlwm tsis zoo. Qhov loj me me yuav tsum yoog raws li qhov yuav tsum tau muaj ntawm cov thickness ntau thiab kev ua haujlwm ceev ntawm cov iav ua tiav. Piv txwv li, yog tias thawj thiab thib ob sib tsoo lub log yog nruab nrog 80 mesh 140 mesh sib tsoo log, sib tsoo 8mm mus rau 25mm iav yog qhov zoo, tab sis kev sib tsoo 5-6mm iav yuav ua rau ntug tawg. Feem ntau, 100 mesh 140 mesh sib tsoo log yuav tsum raug xaiv kom tau raws li qhov yuav tsum tau muaj ntawm 4-19mm iav. Tsis tas li ntawd, kev faib nyiaj ntau dhau ntawm kev sib tsoo los ntawm kev sib tsoo lub log 1 tuaj yeem ua rau me me ntug chipping. No.2 yuav tsum tau synchronously kho cov ntug chipping thiab tag nrho cov No.1 sib tsoo cim. Feem ntau, No.2 tsis quav ntsej thiab qhov kev xaiv ua haujlwm tsis zoo. Txawm hais tias nws zoo nkaus li muaj teeb meem nrog kev sib tsoo lub log 1, nws yog qhov tsim nyog los hloov cov kev ua haujlwm siab No.2 log thiab hloov kho thiab faib cov nyiaj siv ua haujlwm kom tsim nyog.

Q2: Lub kaum sab xis ntawm lub ntsej muag ntawm kev sib tsoo lub log yog ntau sab nraud inclined tshaj lub Hoobkas lub kaum sab xis, nrog rau kev nce ntxiv ntawm sab nraud qis thiab sab hauv siab inclination, thiab txawm tias lub kauj ruam ntawm sab hauv thiab sab nraud.
Teb: Lub kaum sab xis ntawm lub hauv ntej thiab nram qab lub nplhaib tsis tsim nyog los yog lub cev muaj zog yog xoob, kev ua haujlwm ntawm sab nraud ntawm lub nplhaib pem hauv ntej loj heev, thiab lub nplhaib nraub qaum tsis ua haujlwm. Nws yog ib qho tsim nyog los kho lub kaum sab xis ntawm lub cev thiab kho nws raws sijhawm.

Q3: Lub ntsej muag ua haujlwm kawg ntawm kev sib tsoo lub log yog nyob ze rau kab rov tav, thiab txawm tias sab nrauv yog siab thiab sab hauv qis, ua rau 1/3 ntawm lub log sib tsoo siv tsis tau.
A3:

Lub kaum sab xis ntawm lub hauv ntej thiab nram qab lub nplhaib tsis tsim nyog los yog lub cev muaj zog yog xoob, sab pem hauv ntej sab nrauv tsis ua haujlwm, thiab cov khoom ua haujlwm ntawm sab hauv ntawm lub nplhaib nraub qaum yog loj. Lub kaum sab xis ntawm lub cev yuav tsum tau hloov kho thiab kho kom raws sijhawm, thiab cov nyiaj siv ua haujlwm rau lub hauv ntej thiab nram qab lub nplhaib yuav tsum tau muab faib kom tsim nyog.

Q4: Muaj cov cim cuam tshuam rau sab nraud ntawm lub log sib tsoo, lossis muaj cov voj voog ncig ntawm lub ntsej muag kawg, ci iab alloys, thiab lwm yam tshwm sim, uas tsis tuaj yeem siv ntxiv lawm.
A4:

Qhov no tshwm sim feem ntau tshwm sim nyob rau hauv chamfered log los yog sib tsoo log nrog finer pob zeb diamonds, xws li No. 2 thiab No. 3. Yog vim li cas yog hais tias thaum hloov ib tug tshiab sib tsoo log los yog ua tuab thiab nyias iav nrog ib tug loj span, lub pem hauv ntej thiab nram qab txoj hauj lwm. Kev sib tsoo lub log tsis raug kho raws sijhawm, ua rau lub iav tuaj yeem cuam tshuam ncaj qha rau sab nrauv ntawm lub log sib tsoo, lossis cov txheej txheem faib ua ntau dhau ntawm cov kabmob sib tsoo, thiab lub log sib tsoo tsis nres thiab kho kom raws sijhawm. Nws yog ib qho tseem ceeb uas yuav tsum tau rov qab los ntawm kev sib tsoo log thiab maj mam ua raws li cov nyiaj sib tsoo.

Q5: Yog tias tseem muaj txog 2 hli cov hniav sib sib zog nqus hauv tag nrho cov iav, nws yuav tawg, feem ntau hu ua tsis tuaj yeem zom thiab siv tsis tau ntxiv lawm.
A5:

Qhov tob ntawm cov dej inlet zawj ntawm tag nrho cov iav yog 1.5 hli, uas yog qhov siab ntawm cov txheej txheem ua haujlwm. Sab hauv ntawm lub nplhaib ua haujlwm ntawm kev sib tsoo lub log yog 1.5 hli, thiab qhov seem 1.5 hli ntawm qhov hluav taws xob dej qhia tau hais tias cov txheej txheem ua haujlwm tau noj lawm. Txhawm rau tiv thaiv qhov seem ntawm ib feem peb ntawm kev sib tsoo lub log los ntawm kev noj, vim qhov nyiaj siv loj loj lossis kev cuam tshuam ntawm cov iav ntawm cov txheej txheej ntawm cov khoom sib tsoo thaum sib tsoo iav tuab, 3 hli siab kaum tus neeg saib xyuas yog tsim rau sab nrauv. sab ntawm sab ua haujlwm, yog li nws zoo nkaus li tias 4mm tsis tuaj yeem noj tag nrho ntawm sab nraud. Txawm li cas los xij, cov txheej txheem ua haujlwm tiag tiag tau noj tag nrho
